Explorer Cases UK: The NATO Military Surplus Case Nobody Talks About

Somewhere in the gap between the ubiquitous Peli and the aluminium Zarges sits a category of military surplus equipment that serious buyers consistently overlook. Explorer cases UK buyers are beginning to discover what NATO procurement officers have known for decades: Italian-manufactured Explorer Cases offer a combination of precise internal dimensions, IP67 waterproof performance, and genuine military-grade construction that rivals far better-known brands at a fraction of the price. Originally manufactured in Italy and subsequently adopted across NATO member armed forces — including the British Army and RAF — Explorer Cases entered UK military procurement through MoD contracts for electronics transport, communications systems, and medical equipment. This guide covers what Explorer Cases are, why they appear in UK surplus channels, who uses them, and exactly what to inspect before buying one second-hand.

What Are Explorer Cases? A History and Technical Overview

Italian Origins, NATO Adoption

Explorer Cases is an Italian manufacturer based near Milan that has been producing injection-moulded polypropylene protective cases since the 1980s. Unlike Peli — which originated in the United States and dominates American military procurement — Explorer Cases found its early traction in European defence procurement, particularly with Italian, German, and British armed forces seeking high-quality, European-manufactured alternatives to American brands.

The cases are constructed from copolymer polypropylene, the same class of material used in Peli and Hardigg cases. They feature a continuous neoprene O-ring gasket providing IP67-rated waterproofing, double-throw steel latches, and aluminium-reinforced corners on larger models. Internal dimensions are notably precise compared to many competitors — a design characteristic that made Explorer Cases attractive for bespoke foam inserts housing specific instruments, radios, and electronics in military procurement applications.

UK Military Applications

Explorer Cases entered British military supply chains through MoD equipment procurement contracts, primarily for signals and communications equipment. The 9413 series became particularly common in British Army signals units, where precise internal sizing allowed for customised foam inserts housing specific radio sets and ancillaries. Various models also appear in RAF logistics, where slim-profile cases were specified for calibration instruments and technical documentation transport.

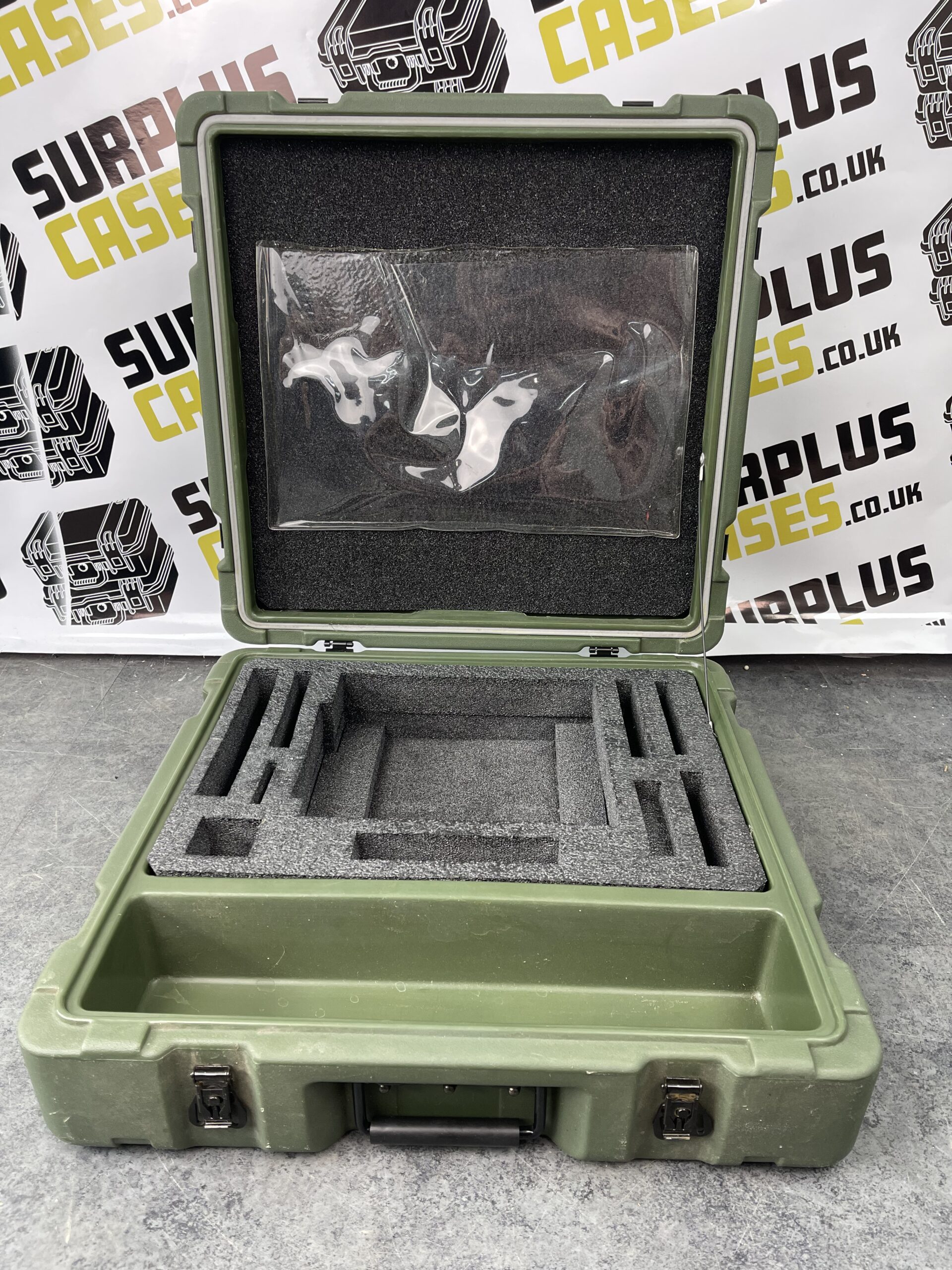

The Range — Models Commonly Found in UK Surplus

UK military surplus channels most commonly yield three model families: the compact 5140 class (approximately carry-on aircraft dimensions, suited to cameras and small electronics), the slim-profile 9413 class (designed for rifles, bows, and long instruments), and the full-sized equipment cases in the 10840 and 13527 class (designed for field electronics and communications equipment). The 9413 series is the most frequently encountered, reflecting its use as general-purpose equipment transport in signals and logistics roles throughout the British Army.

Who Uses Explorer Cases in the UK?

The buyer profile for surplus Explorer Cases is remarkably diverse, which reflects the broad range of military applications that put them into surplus channels.

Photographers and videographers find the 5140 and similar mid-range models ideal for camera bodies, lenses, and accessories. The IP67 rating provides genuine waterproofing on location shoots, and the precise internal dimensions make custom foam cutting straightforward compared to cases with irregular or rounded interiors.

Drone operators — both commercial and hobby — favour the slim-profile 9413 series for transporting drone frames, controllers, and battery packs. The low-profile lid keeps overall depth minimal when loading vehicles or checking equipment into aircraft.

IT professionals and systems integrators use the larger models for server rack transport, laptop deployment kits, and sensitive electronics shipment where IP67 waterproofing matters in outdoor or uncontrolled environments.

Emergency services and search and rescue teams adopt ex-military Explorer Cases for equipment deployment, particularly where kit needs to survive challenging conditions. Their proven field performance under military use makes them well-suited to demanding environments where standard transit cases fall short.

Amateur radio operators value Explorer Cases for portable station builds, where precise sizing allows neat foam inserts for transceivers, batteries, and ancillaries. Our guide to used Peli cases in the UK covers related hard case options for comparison if you are weighing up your choices.

Collectors and re-enactors seek out specific models for authentic display of militaria, uniforms, and accessories, where the NATO stencilling and MoD property markings add genuine provenance to a display or storage solution.

Explorer Cases vs Peli and Other Protective Cases: How Do They Compare?

The most common question from buyers new to Explorer Cases is how they compare to Peli and Hardigg — the dominant brands in the UK protective case market. In most technical respects, the comparison is close. Both use copolymer polypropylene construction, continuous O-ring waterproofing to IP67, and double-throw steel latches. Build quality at equivalent price points is broadly comparable.

Where Explorer Cases differ is primarily in form factor. They are generally slimmer in profile than equivalent Peli models, which suits applications where case depth is a constraint — rifle and bow transport, rack equipment, flat instrument storage. Peli’s range is broader at entry and mid level, and the global Peli ecosystem for replacement foam, lid organisers, and spare parts is larger. However, Explorer Cases’ precise internal dimensions mean standard foam from suppliers like Case Club or custom-cut Pick N Pluck foam fits exceptionally well. For a broader look at how the two leading brands compare, our Peli and Hardigg cases explained guide covers the key differences in detail.

Looking for ex-military hard cases from UK military surplus? We stock a carefully selected range of Explorer, Peli, Hardigg, and Zarges cases, individually inspected and accurately graded. Browse current stock →

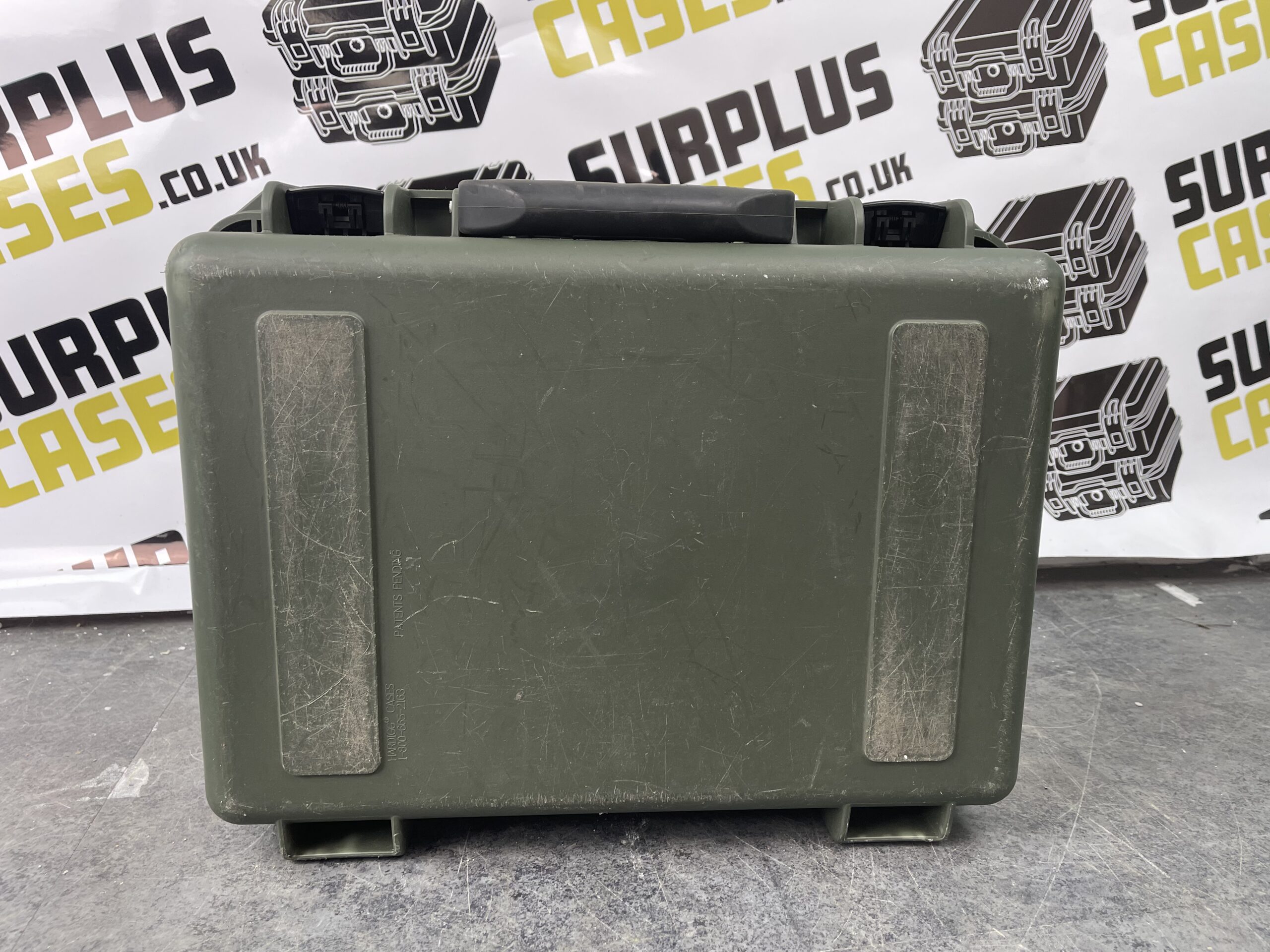

What to Look for When Buying a Surplus Explorer Case

Buying a surplus Explorer Case requires the same systematic inspection approach as any second-hand protective case. The good news is that Explorer Cases are mechanically robust, and most issues found in surplus examples are cosmetic rather than structural.

O-Ring Condition

The continuous neoprene O-ring gasket is the most critical component for waterproofing. Inspect it for cracks, compression set, or areas where it has shifted from its channel. A correctly seated O-ring that shows even compression marks around the entire perimeter indicates the case has been regularly closed and maintained its seal in service. Replacement O-rings are available from Explorer Cases distributors for all major models, so a deteriorated O-ring is a repair rather than a reason to decline a case in otherwise good condition.

Latch Integrity

Explorer Cases use double-throw steel latches that are more resistant to accidental opening than single-throw designs. Check that all latches engage positively and hold under gentle upward pressure on the lid. Bent or sprung latches indicate a drop incident and warrant closer scrutiny of the case body for cracks at stress points near the latch mounts.

Body and Corner Integrity

Run your fingers along all four base corners and examine the lid corners carefully. Fine surface crazing is normal on any used case and does not affect waterproofing. Through-cracks that penetrate the case wall are a reason to decline. On larger Explorer models with aluminium corner reinforcements, check the polypropylene around the corner fittings where stress concentration is highest after an impact.

Foam Condition

Military surplus cases often arrive with cut foam from their original equipment application. Assess whether existing foam is usable for your purpose, or budget for replacement. Pick N Pluck foam inserts cut to Explorer Cases internal dimensions are widely available and inexpensive relative to the saving achieved on a surplus case versus buying new.

Frequently Asked Questions

How much does a surplus Explorer Case cost compared to buying new?

New Explorer Cases retail in the UK at approximately £80–£300 depending on the model and series, with popular mid-range models like the 9413 typically at £150–£230 new from distributors. Surplus examples in good used condition typically sell for £40–£120, representing a saving of 50–65% against new retail. Prices vary with condition and model scarcity — the slim-profile 9413 series commands a slight premium in the surplus market due to consistent demand from drone operators and photographers. Cases retaining their original foam inserts in good condition are worth marginally more, as well-cut foam has real value for buyers who can repurpose it for similar equipment.

Is a surplus Explorer Case still waterproof?

Most surplus Explorer Cases retain their IP67 waterproofing provided the O-ring is intact and correctly seated. The polypropylene body does not degrade significantly with age, and the double-throw latches maintain positive closure across many years of use. The most common cause of seal failure in surplus cases is O-ring displacement or minor damage — easily checked visually, and resolved with an inexpensive replacement part available from Explorer Cases distributors. Any case stored in a damp environment may have an O-ring with a slight compression set; testing by closing the case and applying a damp cloth around the seal line confirms integrity before relying on it for sensitive equipment.

What Explorer Case sizes are most commonly available in UK military surplus?

UK military surplus most consistently yields three size families. The compact 5140 class (approximately 510 × 280 × 193 mm, close to carry-on aircraft size) is common, often with cut electronics or camera foam. The slim-profile 9413 class (940 × 330 × 176 mm) is the most frequently encountered model, reflecting its use as general-purpose signals equipment transport in the British Army. Full-sized cases in the 10840 and 13527 class appear less frequently but do come through surplus channels, typically from signals or logistics unit disposals. Very large models above the 13527 are rare in UK civilian surplus and are more likely to appear in specialist military auction lots.

Can I take a surplus Explorer 5140 as airline carry-on?

The 5140 model (510 × 280 × 193 mm) falls close to standard European short-haul carry-on limits, though individual airline policies vary — most accept cases up to approximately 55 × 40 × 20 cm. The 5140 meets typical limits with a small margin, making it viable as cabin baggage for photographic or electronic equipment you need to keep with you. Always verify the specific airline’s current size policy before travelling, as dimensions differ between carriers and are updated periodically. The case must also comply with any airline restrictions on hard-sided carry-on, and with pressure equalisation requirements if used to transport firearms or pressure-sensitive equipment as checked baggage.

How do I identify a genuine NATO-sourced Explorer Case?

Genuine NATO-procurement Explorer Cases typically carry NATO stock number (NSN) stencilling on the exterior — usually on the base or side panel. The NSN follows the standard 13-digit NATO format. British Army-issued cases frequently carry MoD property markings or broad arrow marks stamped into the polypropylene or applied as stencil paint. Civilian Explorer Cases are identical in construction to military variants — the NATO origin simply confirms the case was supplied to a military procurement specification and inspected to MoD acceptance standards. Either variant is equally suitable for civilian use; NATO provenance is a useful condition indicator, as military-grade acceptance testing means procurement cases were in sound condition when they entered service.

Browse Explorer Cases at Surplus Cases

Our Explorer Cases stock is sourced directly from UK military disposal channels — primarily MoD signals and logistics disposals. Each case is individually inspected on arrival: we check O-ring condition, latch engagement, hinge integrity, and body condition before listing. We describe condition accurately, including stencilling, foam state, and any cosmetic marks, so you know exactly what you are buying.

Listings include precise internal and external dimensions so you can confirm fit for your equipment before purchasing. We dispatch from our UK warehouse typically within 1–2 working days. For help identifying the right model for a specific application, contact us directly — we’re happy to advise on model selection from current stock.

Explorer Cases are one part of our broader ex-military cases range, which includes Peli, Hardigg, Zarges, Amazon CP, and flight cases sourced from the same military disposal channels. If you are comparing case options across brands and sizes, our Peli vs Zarges case comparison covers two of the most popular surplus case families side by side.
