What Is a Peli Storm Case? The Complete UK Buyer’s Guide

The Peli Storm case is not the same as the standard Peli 1xxx series, and that distinction matters when you are buying ex-military surplus. Peli Storm cases — sold under the iM-series designation — feature a redesigned Press and Pull latch mechanism, an integrated automatic pressure equalisation valve, and a lower lid geometry that sets them apart from their 1xxx counterparts. UK military and NATO armed forces procured Storm cases for sensitive electronics, communications systems, and medical instrumentation where the automatic purge valve’s ability to equalise cabin pressure during air transport was a specific operational requirement. Surplus examples appear regularly in UK military disposal channels, typically in sound condition relative to their age, because the Storm series was specified for applications where case integrity was critical. This guide covers what Peli Storm cases are, how they differ from standard Peli, who uses them, and what to inspect before buying surplus.

What Is a Peli Storm Case? Design, History, and Key Features

The iM-Series Difference

Peli (known as Pelican in North America) launched the Storm series — marketed as the iM series in the UK — to address specific requirements not fully met by the 1xxx series design. The most significant mechanical change was the Press and Pull latch: a push-button mechanism that eliminates the need to disengage over-centre latches manually. In operational military use, this allows cases to be opened quickly whilst wearing gloves — a practical advantage in field conditions that influenced MoD procurement decisions across signals, avionics, and medical units.

The automatic pressure equalisation valve is the second key differentiator. Standard Peli 1xxx cases use a manual pressure relief valve that must be operated before opening at altitude or after a temperature change. Storm cases incorporate a Gore-tex membrane valve that equalises pressure automatically, allowing the case to be opened immediately without a venting procedure. This made the Storm series the preferred choice for air transport of sensitive calibration instruments, where a manual valve left unoperated could make the case difficult to open or risk a pressure differential across the seal.

Construction and Waterproofing

Peli Storm cases use the same copolymer polypropylene body construction and continuous neoprene O-ring gasket as the 1xxx series, and carry the same IP67 waterproof rating — submersion to one metre for thirty minutes. The lid profile is notably lower than equivalent 1xxx cases, reducing overall depth and making Storm cases a more efficient packing solution for flat equipment such as laptops, instrument panels, and camera systems. Structural integrity is comparable to 1xxx series cases; the lower lid profile does not reduce impact resistance in standard military drop testing.

Common Storm Models Found in UK Military Surplus

The most frequently encountered models in UK surplus are the iM2100 (IATA carry-on compliant, equivalent footprint to a Peli 1510), the iM2300 (mid-range electronics case), the iM2500 and iM2600 (larger field equipment sizes), and the iM2750 (full-size case suited to communications equipment). The iM2100 and iM2300 are the most common individual finds; larger models tend to appear in batch disposals from signals and avionics units rather than as single-case lots.

Who Uses Peli Storm Cases in the UK?

The buyer profile for surplus Peli Storm cases reflects the military applications that put them into service — precision electronics transport and sensitive equipment protection where the automatic valve and quick-release latch had specific operational value.

IT professionals and systems integrators value Storm cases for laptop deployment, server hardware transport, and sensitive electronics shipment. The lower lid profile suits flat equipment — a 15-inch laptop in a padded insert fits comfortably in an iM2100 without the excess case depth of a standard 1510.

Medical equipment technicians use Storm cases for calibration instruments, portable diagnostic equipment, and laboratory kit. The automatic pressure valve eliminates a handling step and reduces the risk of a precision instrument being exposed to an unintended pressure differential in transit.

Photographers and videographers favour Storm cases for mirrorless camera bodies, cinema cameras, and drone electronics. The lower depth-to-footprint ratio suits camera systems where lens height is manageable but overall case depth should be minimised for vehicle and aircraft loading.

Broadcast and AV professionals use iM2500 and iM2600 class cases for location sound equipment, wireless microphone systems, and portable broadcast kit requiring genuine IP67 waterproofing outdoors.

Amateur radio and SOTA operators build compact portable stations in iM2100 and iM2200 cases, where the low profile suits transceiver, battery, and tuner layouts. Our guide to buying used Peli cases in the UK covers a broader range of Peli surplus options for comparison.

Peli Storm vs Standard Peli 1xxx: Which Should You Choose?

The choice between a Peli Storm (iM series) and a standard 1xxx series case comes down to your specific use case rather than quality — both are manufactured to equivalent standards and carry the same IP67 rating.

Choose a Storm case if you need the lower lid profile for flat equipment layouts, the automatic pressure valve for regular air transport, or the Press and Pull latch for cold-weather and gloved-hand operation. Choose a standard 1xxx series if you need a deeper case for taller equipment, a broader accessory range (lid organisers, dividers, panel frames), or very large dimensions — the 1xxx series extends to the 1770 and beyond, whereas Storm tops out at the iM3100. Our new vs used Peli cases comparison covers the full cost picture if you are weighing surplus against retail for either series.

Looking for Peli Storm cases from UK military surplus? We stock a carefully selected range, individually inspected and accurately graded. Browse current stock →

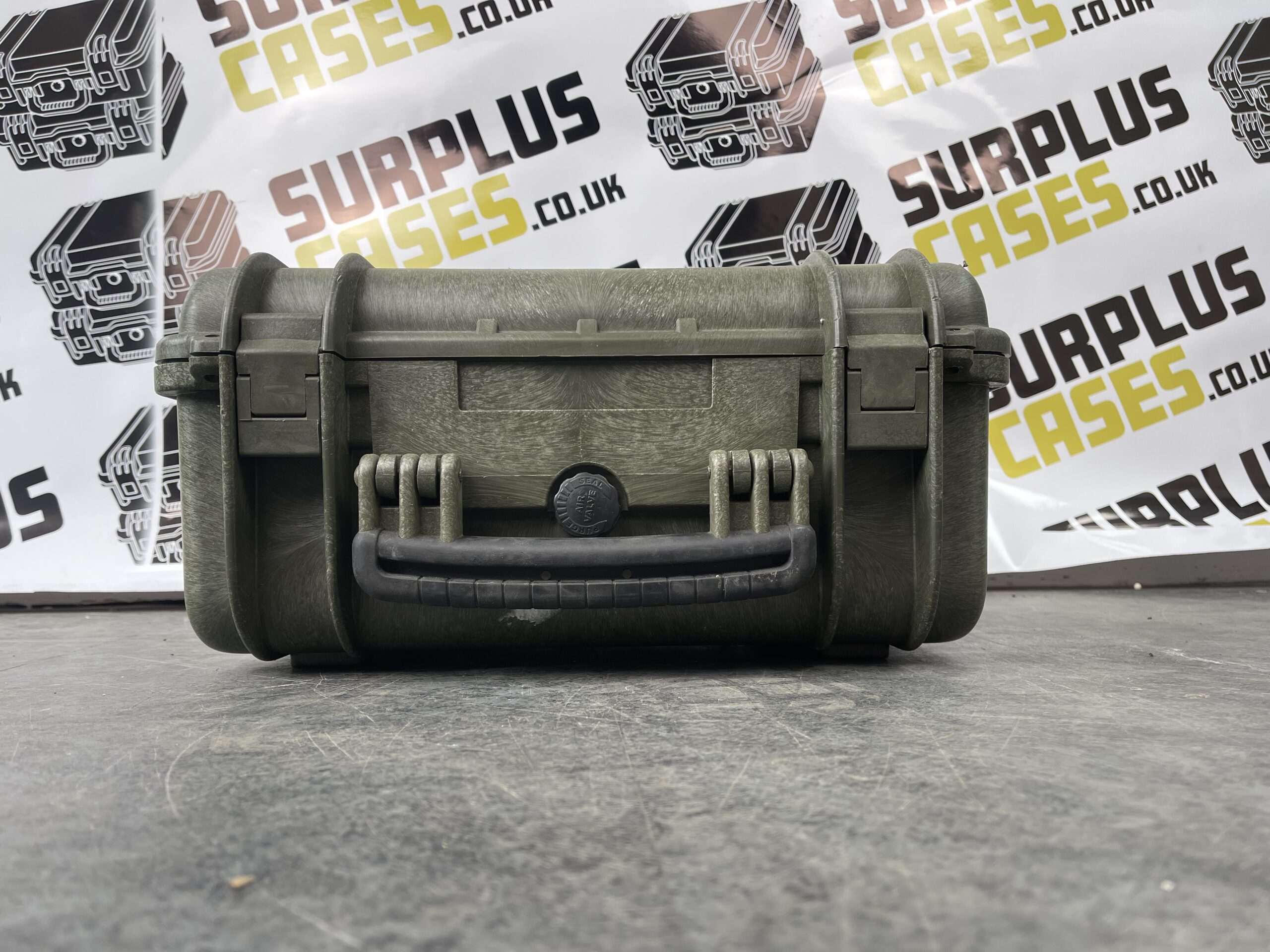

What to Look for When Buying a Surplus Peli Storm Case

Surplus Peli Storm cases require systematic inspection at the same checkpoints as any second-hand hard case, with two areas of additional attention specific to the Storm series design.

Press and Pull Latch Function

The Press and Pull latch mechanism is more mechanically complex than traditional over-centre latches. Test each latch by pressing the button fully and checking that it engages and releases cleanly, without sticking or requiring excessive force. A latch that fails to hold the lid under gentle upward pressure needs attention — typically a spring replacement rather than a full latch assembly change, and Peli distributor spare parts cover all iM-series models. Latches showing deformation at the mount point indicate a prior impact and warrant close inspection of the case body around that area for stress fractures.

Automatic Pressure Valve Integrity

The Gore-tex membrane pressure equalisation valve should be visually intact — the white membrane should be clean and free of punctures or contamination. A blocked or damaged valve does not compromise the closed seal, but will prevent automatic equalisation and may make the case difficult to open if pressure has built inside. Replacement valve membranes are straightforward to fit. Test by pressing gently on the membrane with a fingertip — it should offer slight, even resistance across its face without soft spots or tears indicating damage.

O-Ring, Body, and Foam

The continuous neoprene O-ring runs in a channel around the lid perimeter. Inspect for cracks, compression set, or displacement from the channel — even a short displaced section can break the full-perimeter seal. The polypropylene body should be free of through-cracks at stress points: corners, latch mounts, and the hinge area. Surface crazing and MoD stencilling are cosmetic and expected on ex-military stock. Military surplus Storm cases often arrive with cut foam from their original application; assess whether existing foam suits your equipment, or budget for a replacement insert. Our guide to Peli and Hardigg cases explained covers inspection of all ex-military Peli variants in more detail.

Frequently Asked Questions

What is the difference between a Peli Storm and a standard Peli case?

The Peli Storm (iM series) differs from the standard 1xxx series in three principal respects. First, the latch mechanism: Storm cases use Press and Pull latches that open with a button press, rather than the over-centre double-throw latches of the 1xxx series. Second, the pressure valve: Storm cases incorporate an automatic Gore-tex membrane valve that equalises pressure without user action, whereas 1xxx series cases use a manual valve that must be vented before opening. Third, the lid profile: Storm lids are notably lower than equivalent 1xxx cases, making them more efficient for flat equipment layouts. Both series share IP67 waterproofing, polypropylene construction, and continuous neoprene O-ring sealing. The 1xxx series offers a broader accessory ecosystem and wider maximum size range; the Storm series prioritises speed of operation and air transport convenience.

Are surplus Peli Storm cases still waterproof?

The majority of surplus Peli Storm cases retain their IP67 waterproofing, provided the O-ring is intact and the pressure valve membrane is undamaged. The polypropylene body does not degrade significantly with age. The most common causes of seal compromise in surplus Storm cases are O-ring displacement — visually detectable and easily corrected — and a partially blocked pressure valve, which affects opening convenience rather than the closed seal. Any case can be field-tested by closing it over a damp cloth and inspecting for moisture ingress after a few minutes. Replacement O-rings and valve membranes are available from UK Peli distributors at modest cost, so minor seal issues are repair projects rather than reasons to decline an otherwise sound case.

How much does a surplus Peli Storm case cost compared to new?

New Peli Storm (iM series) cases retail in the UK at approximately £120–£380 depending on the model. The iM2100 typically retails at £140–£160 new; the iM2500 and iM2600 range from £200–£280; larger models approach £300–£380. Surplus examples in good used condition typically sell for £60–£180, a saving of 50–60% against new retail. Prices reflect size, condition, and whether original foam is present — a Storm case retaining usable cut foam commands a premium over a stripped example. Cases from avionics and calibration unit disposals tend to be in particularly good condition, as they were maintained to a high standard for precision equipment protection.

What Peli Storm sizes are most common in UK military surplus?

The iM2100 is the most commonly found individual unit in UK surplus — its IATA carry-on compliant footprint made it the default choice for personal electronics and mission-critical kit that travelled with personnel. The iM2300 and iM2200 appear regularly, typically from signals and electronics unit disposals. The iM2500 and iM2600 are found less frequently as individual lots, more often in batch disposals. Very large models (iM2750, iM3100) are uncommon as civilian surplus finds — they appear in specialist military auction lots rather than standard disposal channels. Stock rotates frequently with new disposal batches, so it is worth checking back or contacting us if you need a specific model.

Browse Peli Storm Cases at Surplus Cases

Our Peli Storm case stock is sourced from UK military and MoD disposal channels, primarily electronics, avionics, and signals unit batches. Each case is individually inspected on arrival: we check Press and Pull latch function, pressure valve membrane condition, O-ring integrity, hinge engagement, and body condition before listing. We describe condition accurately — stencilling, foam state, and any cosmetic marks — so you know exactly what you are buying.

Listings include precise internal and external dimensions, confirmed from the case itself rather than manufacturer specifications. We dispatch from our UK warehouse typically within 1–2 working days. Our Peli Storm cases sit alongside our broader Peli cases range, which includes 1xxx series models in various sizes from the same military disposal sources.
